NEWAY ADZ

The NEWAY ADZ Drive Axle Air-Ride Suspension is the industry’s lightest weight, 100% off-highway approved air suspension for heavy-duty vocational truck and tractor applications.

Technical data





Capacity per Axle: 23,000 / 26,000 lbs. (10.4 / 11.8 t)
Ride Heights: 8.50 - 15” (215 - 280 mm)



Product information

The NEWAY ADZ is the lightest, toughest and most stable heavy-duty 100% off-highway approved air suspension for heavy-duty vocational tractor and truck applications.

The ADZ Air-Ride Suspension features:

  • One piece lower control arm assembly provides best-in-class linear roll rate

  • V-Rod upper control arms in place of traditional torque and track rods

  • Wide spaced cast steel trailing arms for stability

  • Integrated lightweight cross-member

  • EZ-Align non-welded axle alignment

  • Weld-on or bolt-on axle adapters

  • Drive line friendly non-torque reactive parallelogram design

  • Single, tandem and tridem configurations available

  • Superior traction and braking performance

  • Black Armour Corrosion Protection

Recommended use

Technologies

Black Armour® Corrosion Protection Learn more
Black Armour® Corrosion Protection Learn more

Literature

Document Thumbnail

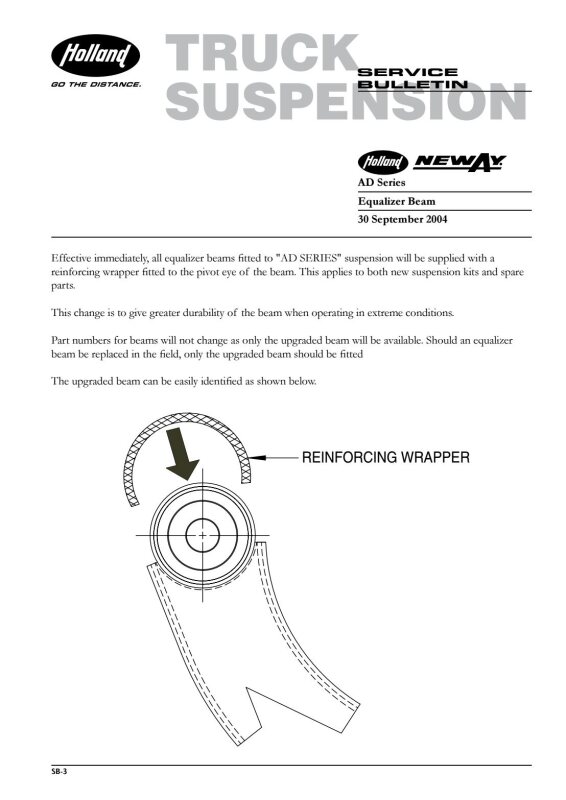

Service Bulletin 03
PDF / 143.80 KB
